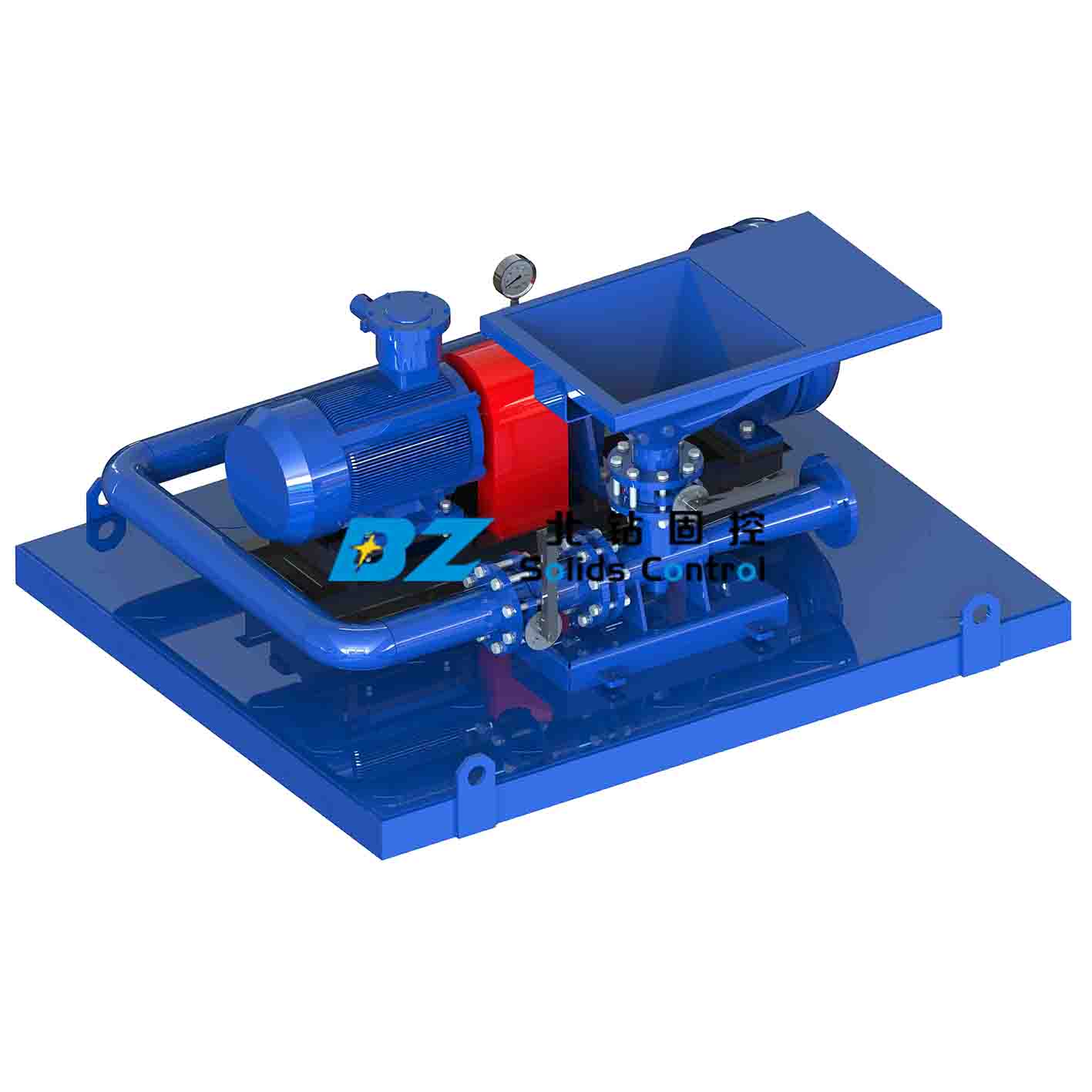

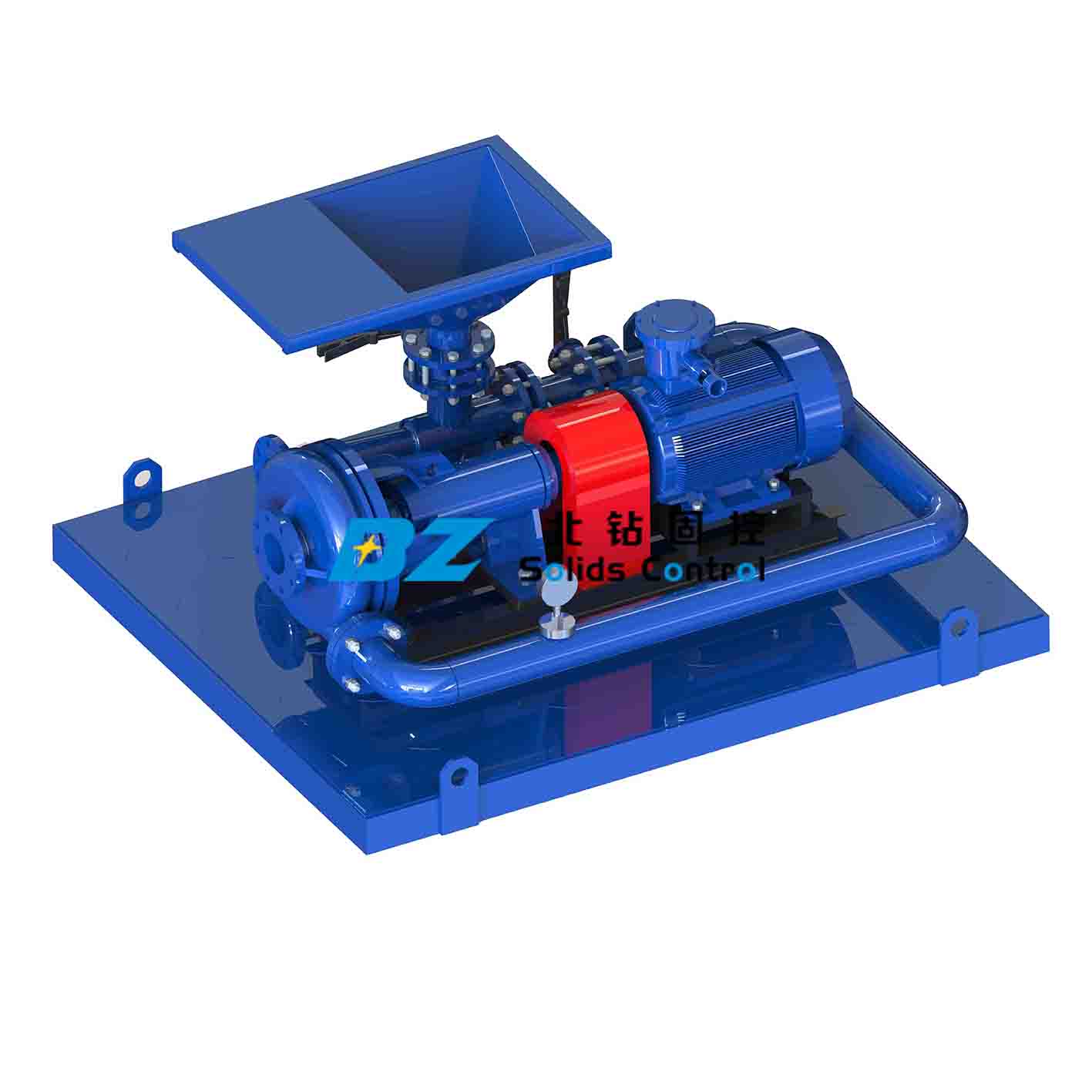

Mud Mixing Hopper
Mud mixing hopper is a special equipment to prepare and increase drilling fluids weight by adding and mixing bentonite, changing fluid density, viscosity and dehydration.
Description
One sand pump and one mud mixing hopper are instaled on a base with pipe valves. It has a more excellent operation performance if being matched with a shear pump.
BZ solids control provides twin-hopper mud mixing device with two pumps according to the user requirements.
BZ Mud Mixing Hopper Technical Specification：
| Model | BZSL150-50 | BZSL150-40 | BZSL150-30 | BZSL100-25 |
| Capacity | 240m³/h | 180m³/h | 120m³/h | 60m³/h |
| Pump Model | BZSB8X6-13 | BZSB6X5-13 | BZSB5X4-12 | BZSB5X4-11 |
| Pump Power | 55kW | 45kW | 37kW | 11kW |
| Working Pressure | 0.25~0.4Mpa | |||
| Inlet | DN150 | DN100 | ||
| Nozzle | 50mm | 40mm | 30mm | 25mm |
| Outlet | 600X600mm | |||
| Mixing Speed | ≤100kg /min | ≤80kg /min | ≤60kg /min | ≤40kg /min |
| Mud Weight | ≤2.8g/cm³ | ≤2.4g/cm³ | ≤2.0g/cm³ | |
| Mud Viscosity | ≤100s | ≤80s | ≤60s | ≤40s |
| EX Standard | ExdIIBt4/IECEX/A-TEX | |||
| Dimension | 2200×1700×1200mm | 2200×1700×1200mm | 2000×1650×1100mm | 2000×1650×1100mm |
Features of BZ Mud Mixing Hopper:
· Big hopper inlet diameter, high mixing capacity, Wide range of material applicability
· Compact structure, less space needed and easy to move
· Special spraying design, guarantee mixing time and performance
. Ex motor and electrical components, mechanical seal pumps, long service life
